With as much as 50% of a machine’s repair costs over its lifetime related to its undercarriage, the need for ongoing maintenance should be apparent. As one of the most important and heavily utilised components of an item of construction or excavation equipment, your machine’s undercarriage requires ongoing attention and care if it’s to deliver the operational productivity and efficiency that you’d expect of a major investment. What’s more, as an incorrectly functioning undercarriage can affect the performance and lifespan of other components, resulting in decreased productivity, downtime and preventable repair and ownership costs.
To get maximum productivity and lifespan from your excavation and construction equipment like dozers and excavators, you must operate your machines correctly, carry out undercarriage maintenance regularly and understand how undercarriage wear is caused.
Factors that Affect Undercarriage Wear
A wide range of factors can affect undercarriage wear, including the materials the machine is working with, the terrain it’s operating on and the application or type of job that it’s performing.
Applications
The application and materials that a machine works with all have an effect on the rate of wear on different undercarriage components.
Loading — Shifts the weight from the rear to the front of the machine, affecting the front and rear rollers.
Dozing & Push Loading — Shifts the weight to the front, affecting the front rollers and idlers.
Excavating — Shifts the weight to the digging side, while spreading dumped materials affects the components on the undercarriage side.
Ripping — Shifts the weight to the rear of the machine, affecting the rear rollers, sprockets and idlers.
Terrain
While you can’t control the terrain that you’re working in, your operators must be aware of how different terrain contours and slopes affect undercarriage wear.
Working on a Crown — Shifts the load to the inboard components, affecting the grouser ends, inner links, rollers and idler treads.
Working in a Depression — Shifts the load to the outboard components, affecting the outer links and rollers, idler treads and grouser ends.
Working Uphill — Shifts the weight and load balance to the rear, affecting the rear rollers, forward drive side sprockets and bushings.
Working Downhill — Shifts the weight and load balance to the front of the machine, affecting the front track rollers and idlers.
Working on a Side Hill — Shifts the weight and load to the downhill side of the machine, affecting the components on the upper side.
Undercarriage Maintenance
Correct undercarriage maintenance for dozers, excavators and other machines involves daily walk-arounds and scheduled inspections and servicing to identify issues early on and avoid unnecessary repairs and parts replacements.

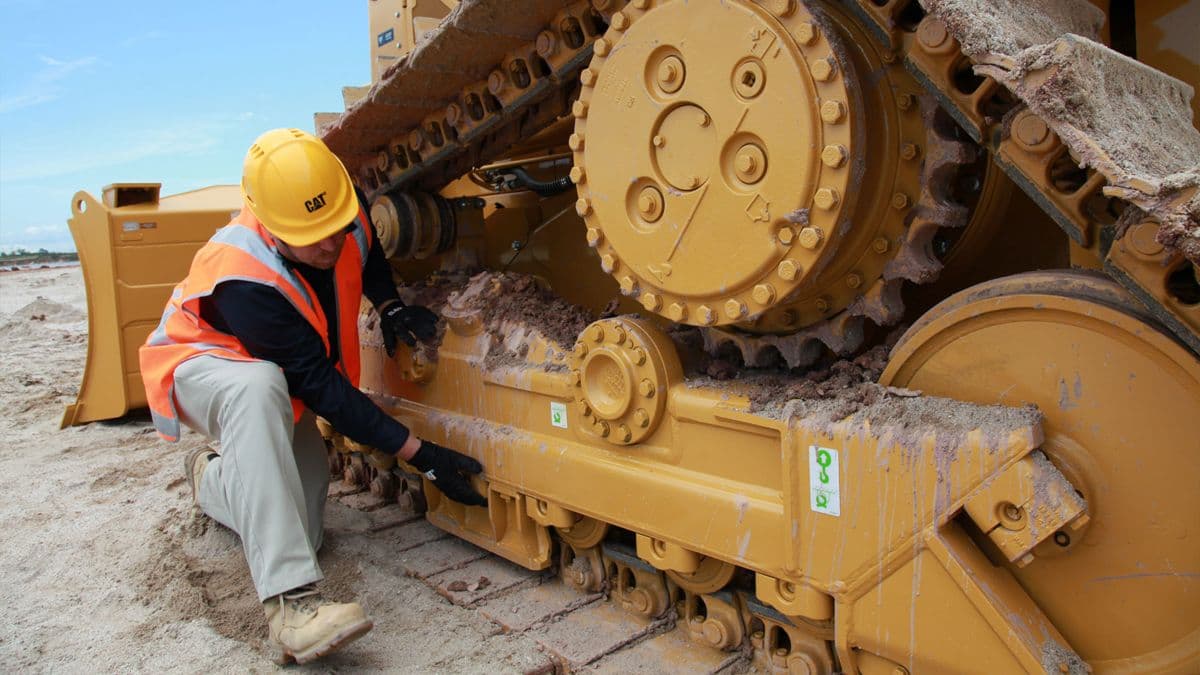

Daily Walk Around — Inspecting your machines’ undercarriage before each shift helps to identify potential undercarriage issues and improves safety for your operators and everyone on site. Operators should also check for debris throughout their shift when working in tough terrain or with tough materials.
Regular Cleaning — Clean out your machines’ undercarriage as often as possible to prevent ‘packing’ between components like rollers, links, bushings and sprocket teeth and remove stones, twigs and other demolition debris that can’t be extruded through the centre-punched shoes.
Scheduled Inspections — Regardless of the size of your fleet, you should have an inspection schedule to ensure your machines are inspected on a regular basis to identify any damaged components or unusual wear patterns and track tension.
Scheduled Servicing — Having your machines serviced in line with the owner’s manual ensures your machines and their undercarriage components get the right servicing attention throughout their lifespan. Additionally, scheduled servicing helps to protect warranties.
Undercarriage CTS — Official Cat dealers like Hastings Deering provide a Custom Track Service (CTS), which is a comprehensive program that leverages advanced diagnostic equipment for managing the undercarriage system on your machines.
Correct Operations
To protect your machines from unnecessary wear during operation, your operators should be aware of how applications, materials and terrain affect undercarriage components, and operate their machines correctly.
Correct Track Adjustment — As every application and working condition affects undercarriage wear differently, correct adjustment is key to extending the life of your machines’ undercarriage. Your operators should adjust the track to suit the application and underfoot conditions in which they’re working.
Correct Running Speed — As wear increases proportionally with speed, operating a machine at high speeds unnecessarily can cause wear across the undercarriage components, including roller, link, idler and tread wear in addition to increasing fuel consumption and carbon emissions.
Avoid Unnecessary Reversing — Reverse operations compound bushing and sprocket wear, so operators should avoid reversing whenever possible, especially when working on an incline or decline as this further compounds undercarriage component wear.
Avoid Slipping Tracks — When the tracks slip, wear is increased across all undercarriage components, especially grouser bars, and production capacity can also be significantly reduced which has a direct effect on your business bottom line.
Alternate Turning Directions — Favouring one side when operating a machine can cause uneven wear on one side of the machine due to the increased usage and horsepower, and often results in link side rail, track roller flange and idler flange wear.
